索拉電動窗簾

索拉開合窗簾電機


靜音運行功能+9檔調速功能+電子記憶限位功能+輕觸啟動功能+停電手拉功能+遇阻停止功能+外接觸摸開關功能+內置遙控功能+過溫保護功能+電機獨特上下裝及隱藏式出線安裝方式
Mute operation function +9 speed regulation function + electronic memory limit function + light touch start function + power cut pull function + stop function + external touch openClose function + built-in remote control function + over-temperature protection function + motor unique upper and lower mounting and hidden outgoing mounting method

開合簾電機


開合簾電機技術參數


索拉電機

SOLA電機功能特點:
SOLA超強靜音開合簾電機系統適用于高端國際酒店、公寓、辦公樓、會所、舞臺、別墅、天棚等嚴格要求場景的各類精品工程,提供靈活、穩定、可靠的裝飾及遮陽解決方案;
適用范圍:開合簾、平移簾、水波天棚簾等;
3項專利技術+13項優勢功能:
1.專利技術:唯一9個檔位設計,可根據窗戶大小選檔,實現同一區域空間不同窗戶尺寸可同時開和合時間同步,
也可按個人喜好選擇9種不同快慢速度,最高運行速度21.6cm/s;
2.專利技術:電機可選擇倒立式隱藏電機安裝,也可按常規頂裝露出電機等兩種安裝方案;
3.專利技術:電機有隱藏式不露線出線方案,整體簡潔大方;


突出優勢功能:
1.靜音運行功能:采用領先行業的齒輪技術,噪音低于35 dB;
2.可定制化控制:電機內置無線接收器,外接接收器可根據無線頻段進行定制,個性化實足;
3.獨特手拉功能:系統具有手拉即動功能和停電手拉功能;
4.中途限位功能:根據實際場景需求中途位置可設定限位;
5.緩啟動、緩停止:在啟動和停止過程中系統自帶緩慢提速和減速功能;
6.系統運行穩定:行程具有自動矯正,行程到位無偏差,免人工維護;
7.電子記憶行程功能:無需人工設定行程限位,大大縮短調試時間,遇到停電后行程自動恢復;
8.遇阻停止功能:當滑車遇到阻力大于一定程度或卡住時,瞬間電流激增觸發切斷電源保護功能,有效防止簾布和電機損壞;
9.簾布反彈修正功能:窗簾收攏后會被擠壓,反彈功能使得被擠壓的面料釋放,自然美觀
10.過溫保護功能:電機系統長時間高負荷運行時達到一定的溫度值時,啟動過溫保護電機系統;
11.墻面開關控制:普通墻面控制開關、聯動墻面開關遙控控制;
12.無線遙控功能:Sola開合簾電機具有遙控功能,可以通過遙控器遙控控制;
13.智能家居兼容功能:手機APP控制、酒店客控系統RCU、與Zigbee、Z wave、433、WIFI、RS485、KNX、EIB等兼容。

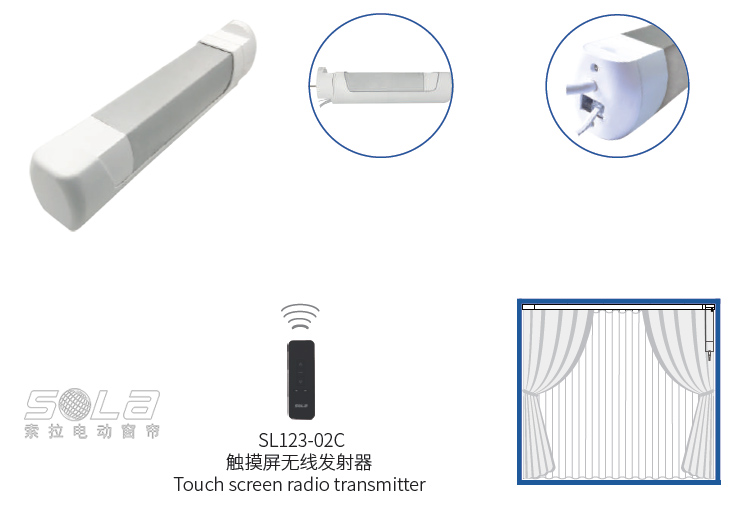

SOLA motor features:
SOLA super quiet opening and closing curtain motor system is applicable to high-end international hotels, apartments, office buildings, clubhouse, stage, villas, ceiling and other strictly required scenesType quality project, provide flexible, stable and reliable decoration and sunshade solutionScope of application: open and close curtains, translation curtains, water wave ceiling curtains, etc.
3 patented technologies +13 advantageous functions:
1. Patented technology: the only 9 gears can be designed, and the gears can be selected according to thewindow size, so that different window sizes in the same area can be opened and synchronized simultaneously.You can also choose 9 different speeds according to your preferences, with the highest running speed of 21.6cm/s.
2. Patented technology: the motor can be installed with inverted concealed motor, or it can be installed with open-top motor according to the conventional installation plan;
3. Patent technology: the motor has a hidden cable-out scheme, which is simple and generous as a whole;Prominent advantages:
1. Silent operation function: adopt the gear technology of the leading industry and the noise is lower than 35 dB;
2. Customizable control: the motor has a built-in wireless receiver, and the external receiver can be customized according to the wireless frequency band.
3. Unique hand-pull function: the system has hand-pull function and power-cut hand-pull function;
4. Stop-stop function: the stop-stop can be set according to the actual situation;
5. Slow start and stop: the system is equipped with slow speed up and slow down functions during start and stop.
6. Stable operation of the system: the stroke is automatically corrected, the stroke is in place without deviation and manual maintenance;
7. Electronic memory trip function: no manual setting of travel limit, greatly shortening the debugging time, and the trip will be restored automatically after power failure;
8. Stop stop function: when the pulley meets resistance greater than a certain degree or is stuck, the sudden surge of current triggers the power cut protection function, effectively preventing the curtainAnd motor damage;
9. Rebound correction function of curtain fabric: after the curtain is closed, it will be squeezed. The rebound function enables the compressed fabric to release, natural and beautiful
10. Over-temperature protection function: when the motor system reaches a certain temperature value when running under high load for a long time, start the over-temperature protection motor system;
11. Metope switch control: ordinary metope control switch, linkage metope switch remote control;
12. Wireless remote control function: Sola open and close curtain motor has remote control function, which can be controlled by remote control;
13. Compatible functions of smart home: mobile APP control, RCU of hotel guest control system, and compatibility with Zigbee, Z wave, 433, WIFI, RS485, KNX, EIB, etc.





控制系統優勢:
1、完美兼容性強;
2、弱電供電終端;
3、有墻面開關及遙控開關兩種智能控制方式;
4、以穩定優越的性能滿足不同的環境使用需要;
5、開關為100%的原裝進口配套產品;
6、與物聯網智能化家居系統同步,可通過智能手機;
(如iphone手機、安卓系統手機等)及平板電腦(如ipad)控制任何場景。

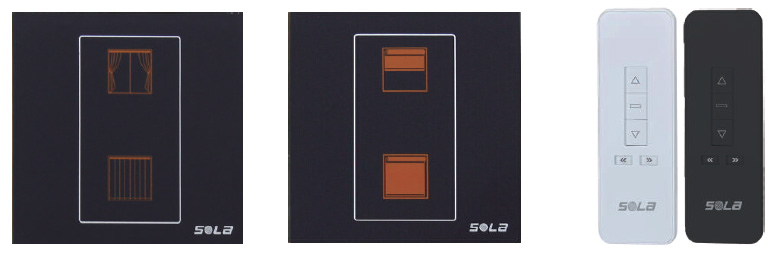

Advantages of control system:
1.Perfect compatibility;
2.weak current power supply terminal;
3.two kinds of smart control modes(wall switch and remote control);
4.Stable and excellent performance to meet the needs of different environments;
5.100% imported original switch accessories;
6.Co-gradient with smart home IOT systems, available to control any scene modes by mart phone (such as iphone, Android system phone) and table PCs(such as ipad).




SOLA導軌:
1.航空鋁型材,表面電泳工藝處理;
2.電機可采用頂裝和倒立裝;
3.軌道無縫拼接(軌道拼接處隱藏式插針);
4.不拆卸式增減走珠;
5.安裝碼可明裝或暗裝;
6.傳動箱:PC料,耐酸、強度高,韌性好,抗氧化,表面光滑;
7.皮帶:拉力強度大,耐磨、長時間受力拉伸不變形;
8.滑車:304不銹鋼材質,強度大,滑車上帶有滾輪,系統運行穩定 耐磨 順暢;
9.走珠:走珠材質本身具有自潤滑功能,運行順暢,同時,采用卡扣設計,走珠拆卸容易,方便拆裝布簾清洗。

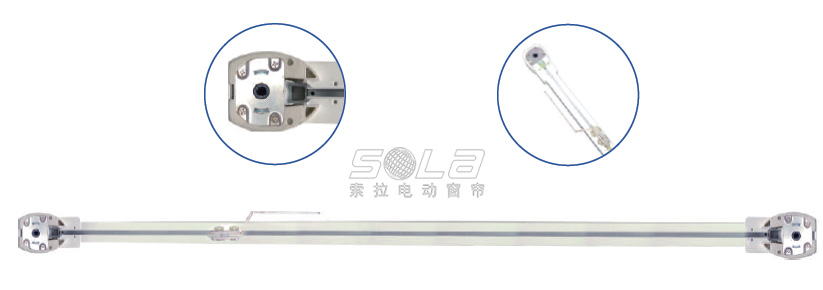

SOLAguide:
1. Air aluminum profile, surface electrophoresis processing;
2. Top mounting and inverted mounting can be used for the motor;
3. Seamless joint of track (hidden pin at the joint of track);
4. Increase and decrease of beads without disassembly;
5. The installation code can be mounted or concealed;
6. Transmission box: PC material, high acid resistance, strength, toughness, oxidation resistance, smooth surface;
7. Belt: high tensile strength, wear-resistant, long-term tensile strength and deformation;
8. Pulley: 304 stainless steel, strong, with roller on the pulley, stable and wear-resistant;
9. Walking bead: the walking bead material itself has the function of self-lubrication, which runs smoothly. At the same time, it adopts the clasp design, which makes it easy to remove and disassemble the cloth curtain for cleaning.
